Production-Ready IoT SoMs
Overview
Our System on Modules (SoM) takes integration to the next level. With built in crystals, networking interface, and memories, you only need to provide power and a few connections to build modern, secure, IoT products.
All SoMs are based on the SC20260B chipset with added external memories.
- Based on SC20260 and SC20100.
- 480Mhz
- -40℃ to +85℃ industrial temperature range.
Modern Software
TinyCLR OS is a modern, managed operating system that brings .NET to embedded devices. It offers garbage collection, threading, and full debugging which allows you to step through code and inspect variables over USB. No costly debugging tools are necessary.
Secure Core Chipsets
Achieve ultimate security with an entire system running on internal memories. External memories are optional and only used for nonsensitive data, like image buffers. All that is achieved trough the SITCore Chipsets.
Module Options
Comparison

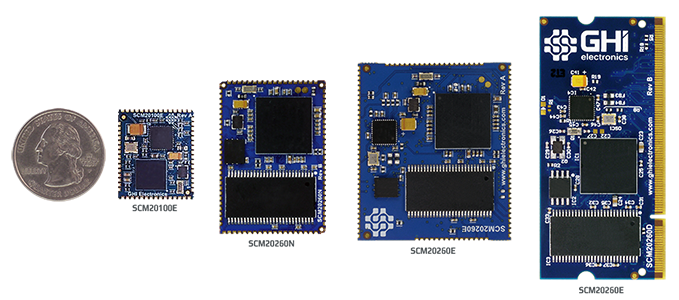

| Module | SCM20100E | SCM20260N | SCM20260E | SCM20260D |
| External SDRAM | None | 32 MByte | 32 MByte | 32 Mbyte |
| External Flash | None | 16 Mbyte | 16 Mbyte | 16 Mbyte |
| Chipset | SC20100B | SC202060B | SC202060B | SC202060B |
| Speed | 480Mhz | 480MHz | 480MHz | 480MHz |
| USB Host | 1 | 1 | 1 | 1 |
| USB Client | 1 | 1 | 1 | 1 |
| GPIO | 43 | 79 | 85 | 108 |
| SPI | 3 | 3 | 3 | 3 |
| I2C | 1 | 1 | 3 | 3 |
| UART | 5(2 with handshaking) | 7 (4 with handshaking) | 8 (4 with handshaking) | 8 (4 with handshaking) |
| CAN | 1 | 2 | 2 | 2 |
| PWM | 12 | 22 | 23 | 28 |
| ADC | 6 | 16 | 15 | 20 |
| DAC | 2 | 2 | 2 | 2 |
| SD/SDIP/MMC | 1 | 1 | 1 | 1 |
| Graphics | via SPI | 16BPP TFT/HDMI | 16BPP TFT/HDMI | 16BPP TFT/HDMI |
| Ethernet | Built in | via SPI | Built in | Built in |
| Camera | ✗ | 1 | 1 | 1 |
| Form Factor | Surface Mount | Surface Mount | Surface Mount | SO-DIMM |
| Temperature Range | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
Note: As many pins share peripherals, not all peripherals will be available. HDMI requires additional circuitry.
Single Board Computer

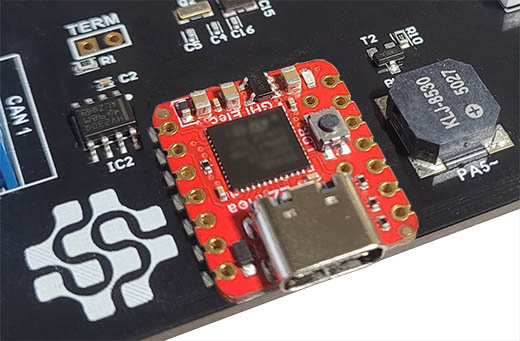

Several of the offered SBCs have castellated holes (edge pads), just like the SMT SoM options. Consider the SBCs when researching SoM options, especially for the SC13048 Chipset.
Development Boards

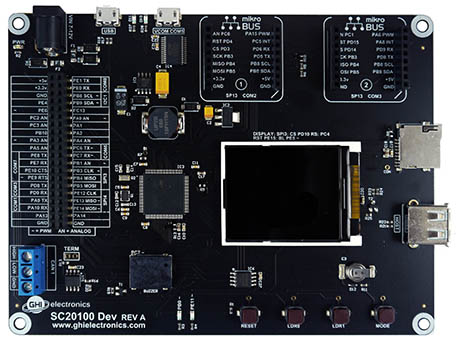

Get started in minutes with a SITCore development board. Our development boards are great for evaluation, prototyping, and production of short run products.
Ordering Info
| Description | Part Number | MSRP | Status |
|---|---|---|---|

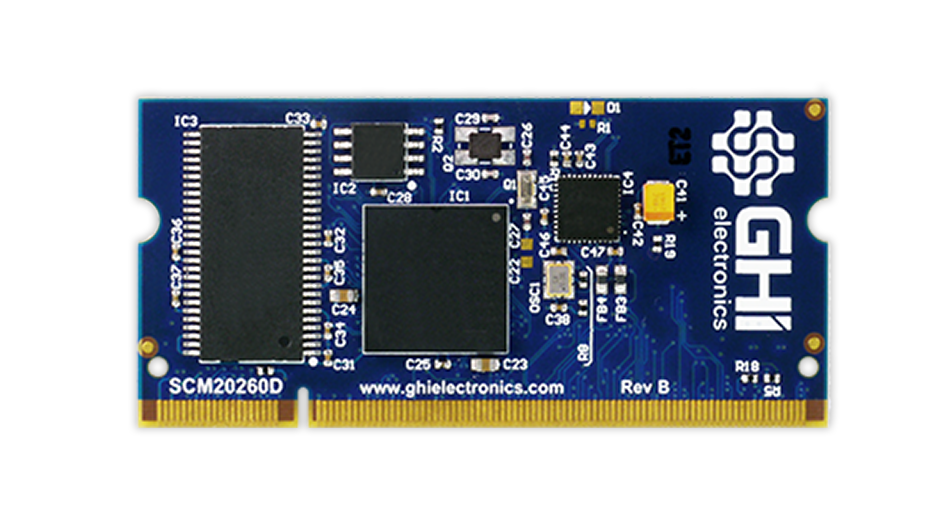

| SITCore SCM20260D SoM | SCM-20260D-C | $59.95 @100 | Active |

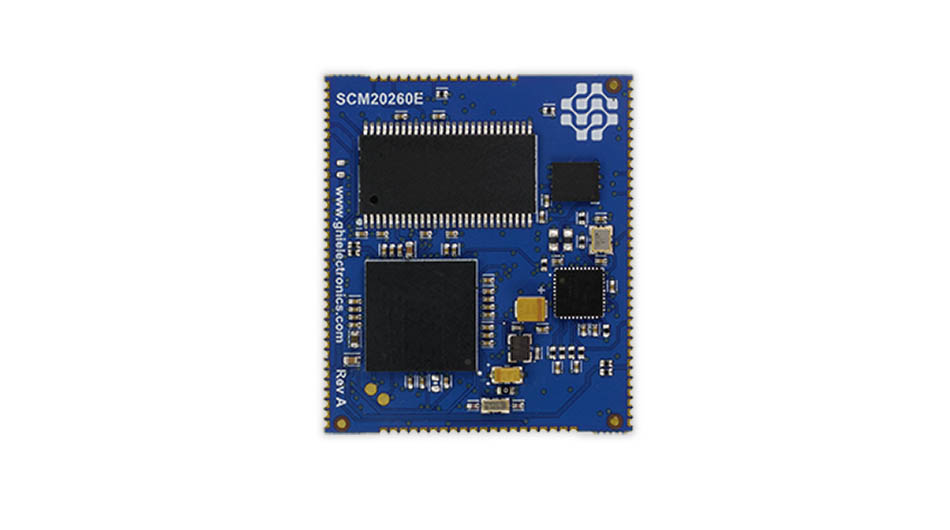

| SITCore SCM20260E SoM | SCM-20260E-B | $52.95 @100 | Active |

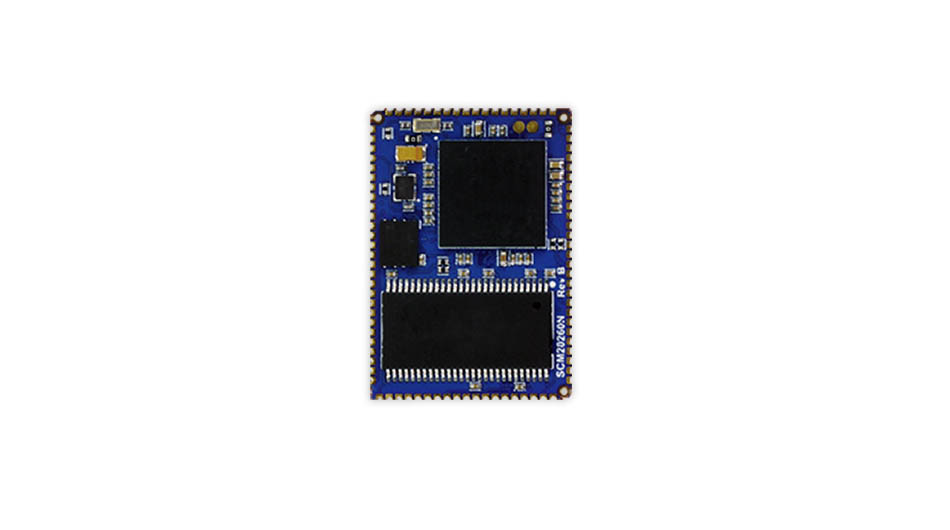

| SITCore SCM20260N SoM | SCM-20260N-C | $46.95 @100 | Active |

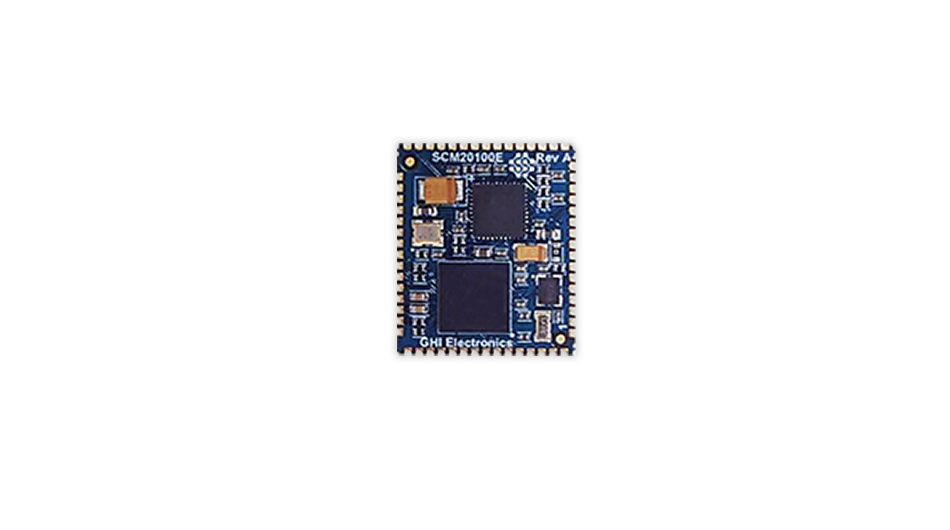

| SITCore SCM20100E SoM | SCM-20100E-B | $34.95 @100 | Active |
