Overview

Not recommended for new designs, replaced by SITCore.

The original .NET for embedded systems, running on the GHI Electronics hardware you know and love.


NETMF History

.NET Micro Framework (NETMF) is a subset of the full .NET Framework. This framework is no longer active — it’s been replaced by the modern and secure SITCore product family, running TinyCLR OS.


Upgrade Path

While the NETMF operating system is no longer active, the GHI Electronics NETMF SoMs and SoCs are still in production in accordance with our longevity promise. Customers should consider upgrading to the SITCore (Secure IoT Core) product family.

Many of the SITCore modules are very close to the older NETMF modules, making for an easier upgrade path.

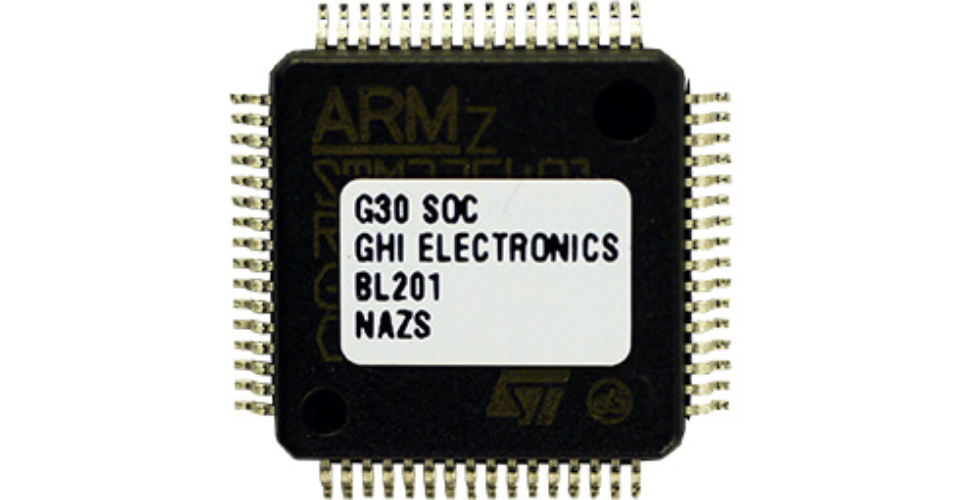

G30

84MHz chipset with 128KB RAM and 68KB RAM.

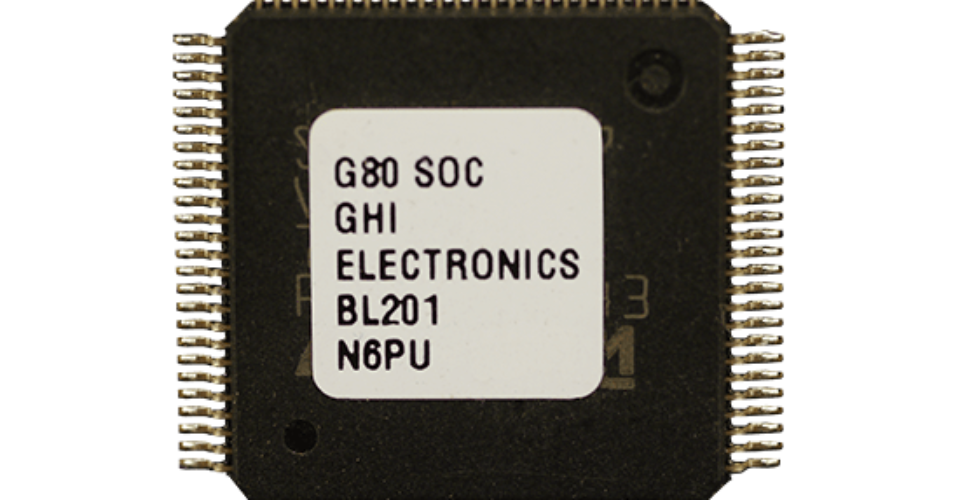

G80

180MHz chipset with 256KB RAM and 156KB RAM.

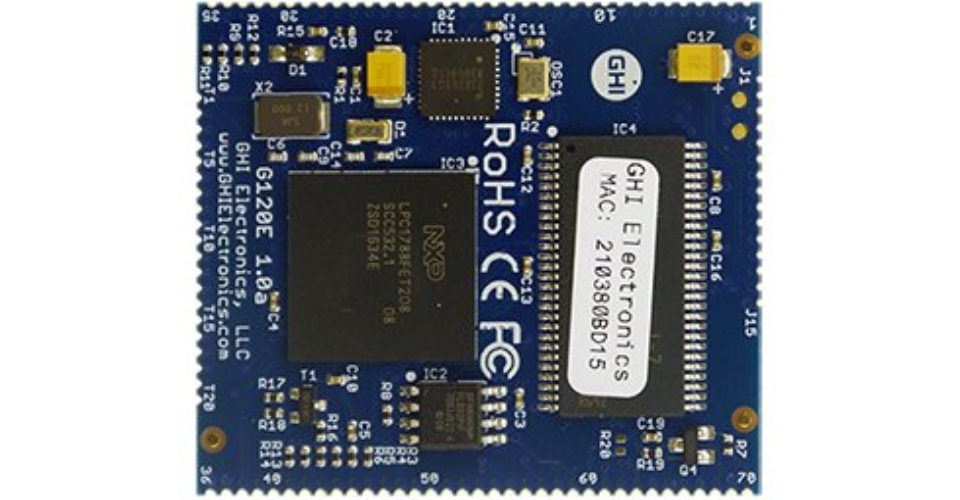

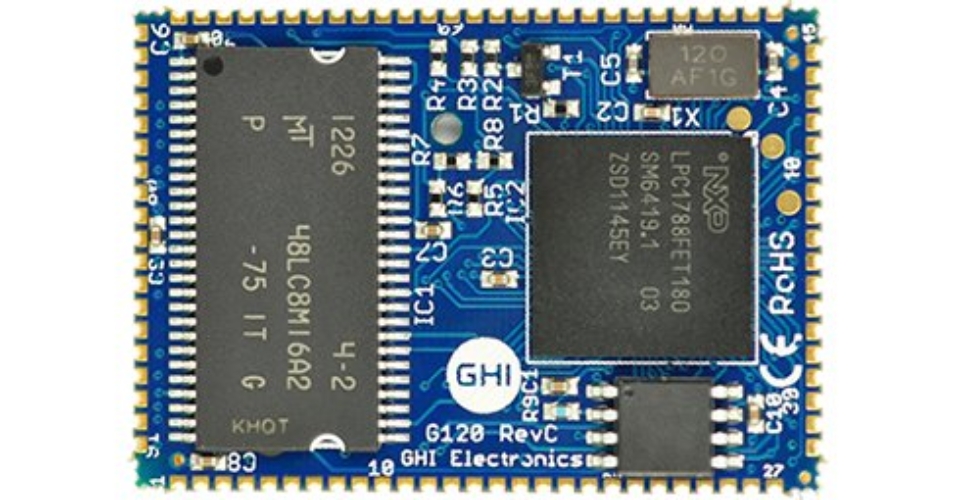

G120/G120E

120MHz ARM Cortex-M3 SoM with 16MB SDRAM and 4MB FLASH.

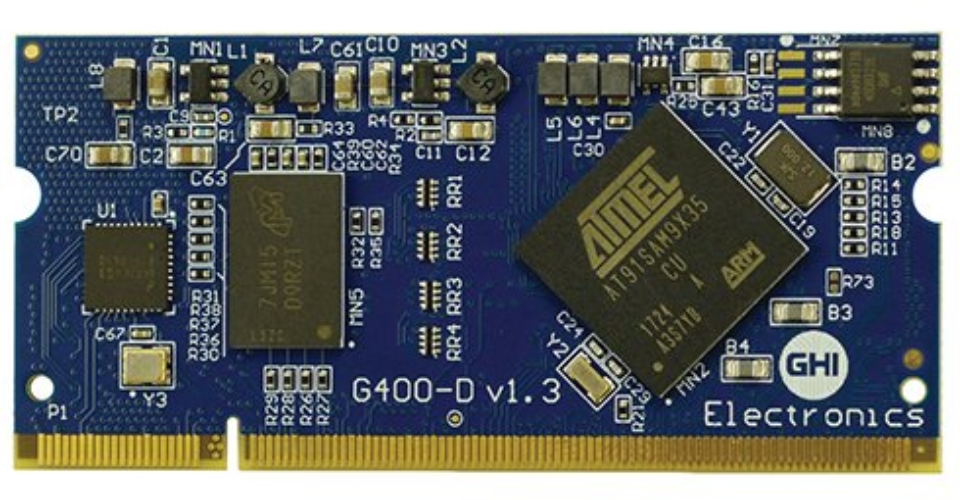

G400D/G400S

400Mhz AT91 ARM9 SoM with 128MB SDRAM and 4MB FLASH plus Ethernet PHY.


Comparison

ProductG30G80G120G400
Processor STM32F401RE STM32F427VG LPC1788 SAM9X35
Speed 84 MHz 180 MHz 120 MHz 400 MHz
TypeSoCSoCSoMSoM
Flash128 KB256 KB2.8 MB1.4 MB
RAM68 KB156 KB13.6 MB92 MB
GPIO498072102
Analog In161688
Analog Out21
PWM1526124
UART2456
SPI2232
CAN222
I2C
1-Wire
USB Host Ports112
USB Debugging
Serial Debugging
Extended USB Client
Ethernet PHY
SPI Wi-Fi
SPI Ethernet
PPP
SSL
Fat File System
Real-Time Clock
Native LCDs
SPI Displays
Startup Logo
SQLite
In-Field Update
Runtime Loadable
Procedures
Address Space
Register
Helper Utilities
Pulse Feedback
Signal Generator
Signal Capture

Ordering Info

DescriptionPart NumberStatus
G30 .NET SoC30SOC-SC-539Mature
G80 .NET SoCG80SC-SM-501 Mature
G120 .NET SoMG120B-SM-373 Mature
G120E .NET SoMG120E-SM-532 Mature
G400-S .NET SoMG400S-SM-480 Mature
G400-D .NET SoMG400D-SM-400 Mature

Technical Resources

Upgrading to SITCore
G30 Docs
G80 Docs
G120 & G120E Docs
G400S Docs
G400D Docs
NETMF Software Docs
