Production-Ready SoCs
Overview
Get started with IoT in hours instead of days with GHI Electronics’ SITCore System on Chipsets. Our Secure IoT Core chipsets are made for modern IoT applications.
- Cortex core processors.
- Secure internal memories.
- Supports external memory
- -40℃ to +85℃ industrial temperature range.
Modern Software
TinyCLR OS is a modern, managed operating system that brings .NET to embedded devices. It offers garbage collection, threading, and full debugging which allows you to step through code and inspect variables over USB. No costly debugging tools are necessary.
Secure Hardware
Achieve ultimate security with an entire system running on internal memories. External memories are optional and only used for non-sensitive data, like image buffers.

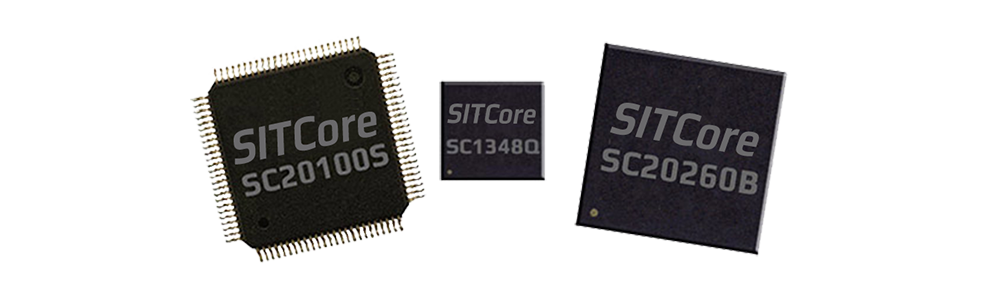

Chipset Options

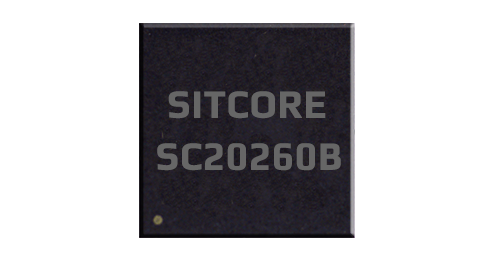

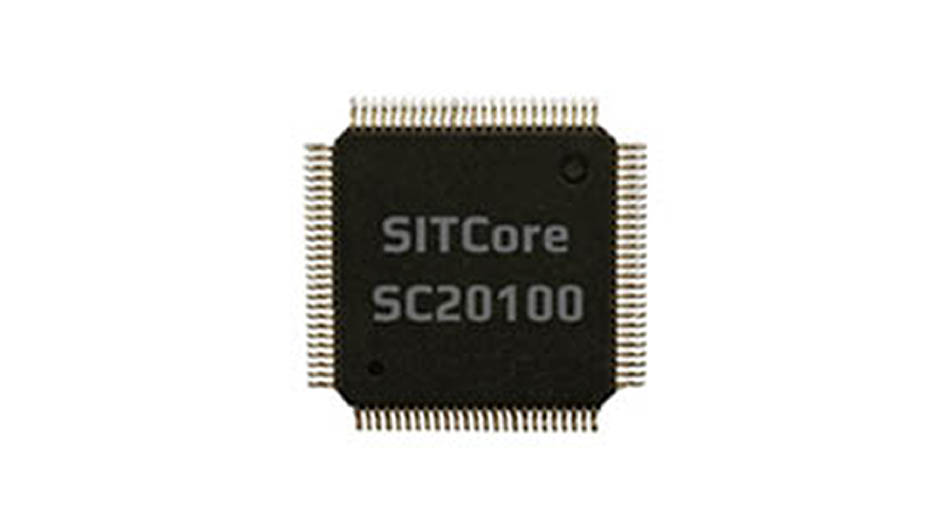

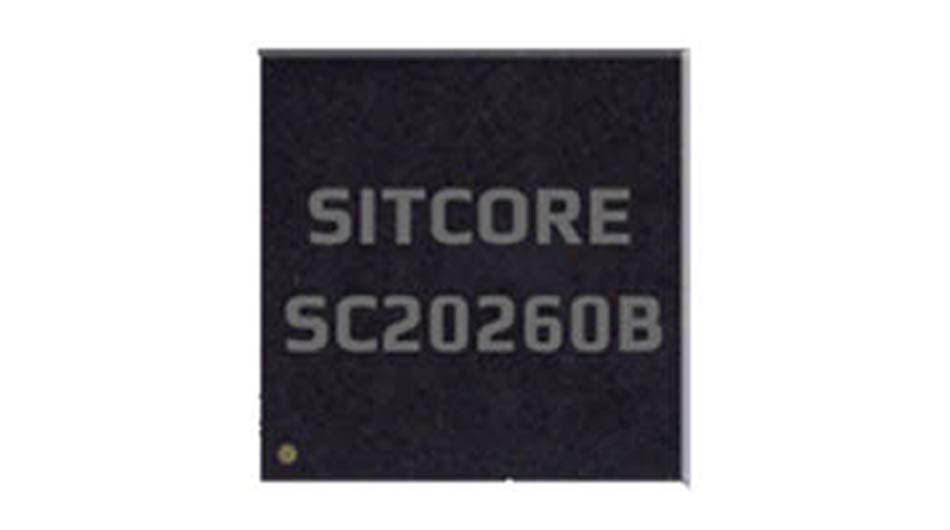

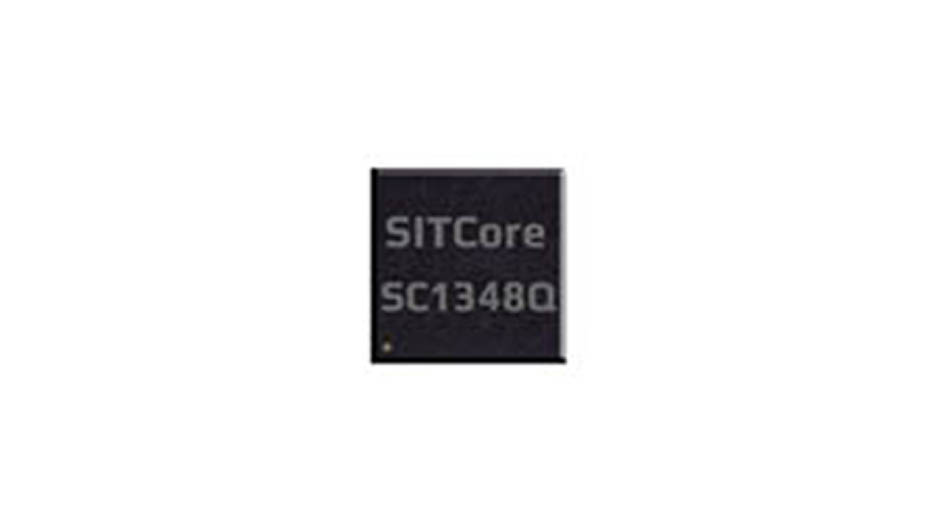

SITCore chipsets are available in multiple packages. They all have identical internal memories and processing power. However, the SC20260B does offer additional IOs and peripherals.
Comparison
| Chipset | SC13048Q | SC20100S/B | SC20260B |
|---|---|---|---|
| Chipset | SC13048Q | SC20100S/B | SC20260B |
| Speed | 80Mhz | 480Mhz | 480Mhz |
| Core CPU | 32-bit Single-precision Math | 32-bit Double-precision Math | 32-bit Double-precision Math |
| User Flash | 220K + 8MB optional external | 640K + 8MB optional external | 640K + 8MB optional external |
| User RAM | 128K | 512K | 512K + 32MB optional external |
| USB Host | ✗ | 1 | 1 |
| USB Client | 1 | 1 | 1 |
| GPIO | 37 | 74 | 161 |
| SPI | 2 | 3 | 3 |
| I2C | 2 | 2 | 3 |
| UART | 4 (2 w/handshaking) | 8 (4 w/handshaking) | 8 (4 w/handshaking) |
| CAN | 1 | 2 | 2 |
| PWM | 10 | 16 | 28 |
| ADC | 10 | 12 | 21 |
| DAC | 1 | 2 | 2 |
| SD | ✗ | 1 | 1 |
| Quad SPI External Flash | 1 | 1 | 1 |
| Graphics | BasicGraphics | Via SPI | 16BPP TFT/HDMI |
| Networking | N/A | Cell, WiFi and Ethernet | Cell, WiFi and Ethernet |
| Camera | 0 | 0 | 1 |
| Opp Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Package | 48pin QFN 7 x 7 mm | S/ LQFP100 14 x 14 mm B/ 100-TFBGA 8 x 8 mm | 265-TFBGA 14 x 14 mm |
Note: As many pins share peripherals, not all peripherals will be available. HDMI requires additional circuitry.
Development Boards
Get started in minutes with a SITCore development board!
Ordering Info
| Description | Part Number | MSRP | Status |
|---|---|---|---|
| SITCore SC13048Q SoC | SC-13048Q-A | $11.95 @100 | Active |
| SITCore SC20100B SoC | SC-20100B-A | Special Order | Active |
| SITCore SC20100S SoC | SC-20100S-A | $19.95 @100 | Active |
| SITCore SC20260B SoC | SC-20260B-A | Special Order | Active |
Technical Resources
Further assistance? We have you covered.
