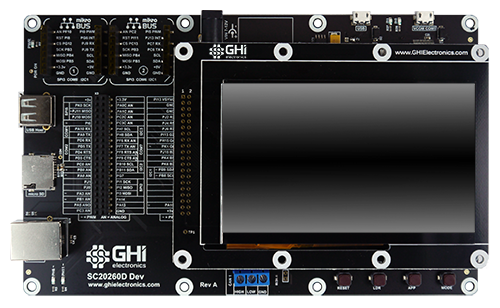

  • SCM20260D_wScreen

Evaluate and Prototype

SITCore Development Boards help fulfill our mission to reduce the cost and time to market of .NET C# embedded product development. Start programming in minutes without designing or building hardware — all while using Microsoft Visual Studio.

  • .NET C# using Visual Studio.
  • Display.
  • Expansion Header.
  • Click Module Connectors.
  • Ethernet.
  • CAN Transceiver.
  • Buzzer.
  • Optional 7 V to 12 V Power Input.
  • And More. . .

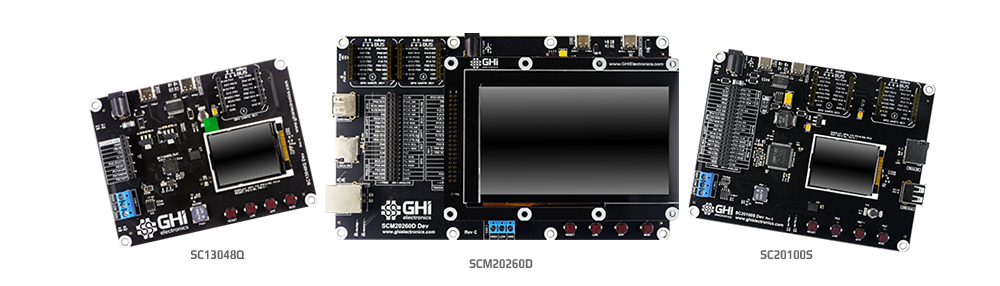

Board Options

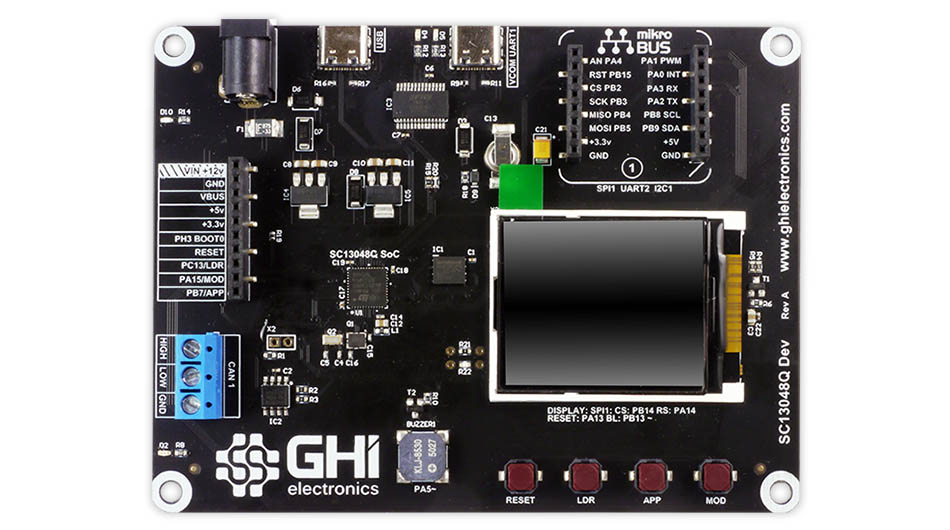

SC13048Q Dev

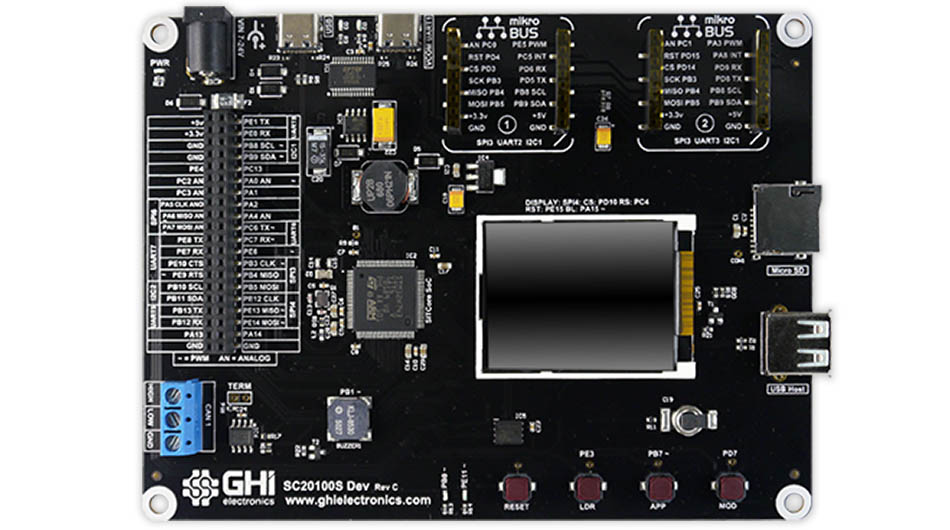

SC20100S Dev

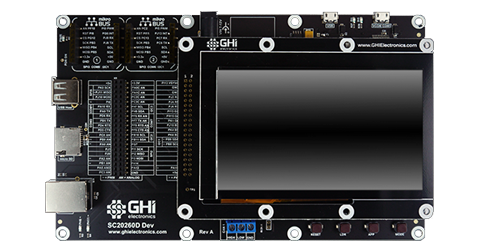

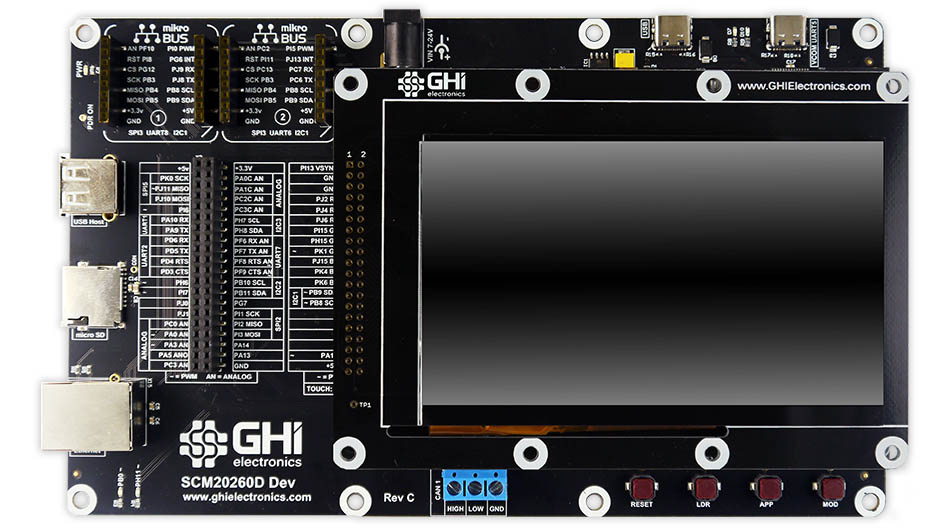

SCM20260D Dev

Comparison

BoardSC13048Q DevSC20100S DevSCM20260D Dev
ChipsetSC13048QSC20100SSC20260B
Display1.8″ 160×1281.8″ 160×1284.3″ 480×272 Touch
7″ 800×600 Touch
Click Connectors122
USB Host
USB Client
USB Virtual Com Port
Ethernet Connector
SD Card Slot
Camera Connector
Buttons444
Buzzer
LEDs1 User, 1 Power, 2 VCom2 User, 1 Power, 2 VCom2 User, 1 Power, 2 VCom
CAN Transceiver
Supercap Power for RTC
Barrel Power Jack

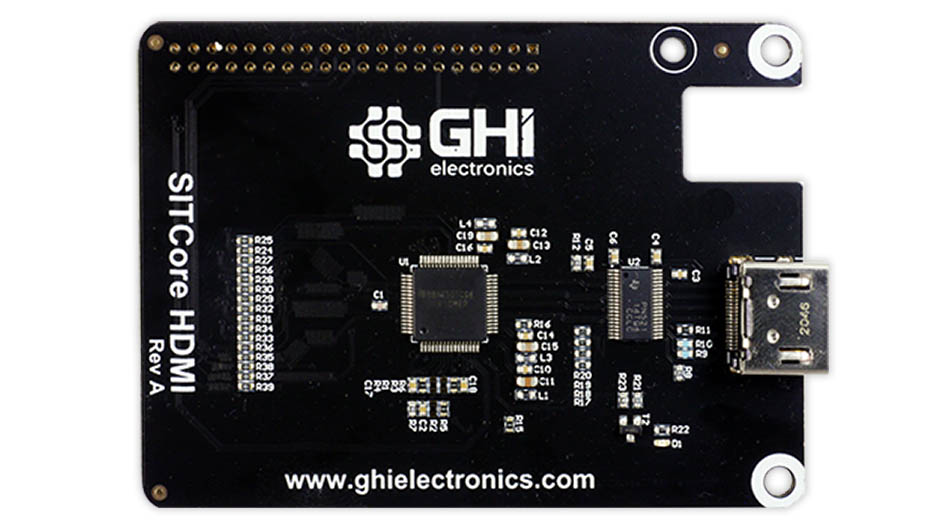

HDMI Support

SC20260 and its related modules are capable of driving TFT signals with frequencies compatible with HDMI/DVI transmitter chipsets. A reference board design is available showcasing the use of HDMI. The board plugs directly into the SCM20260D Dev Board, replacing the included display. Also, a driver NuGet package is provided and supports multiple resolutions, up to High Def 720HD.

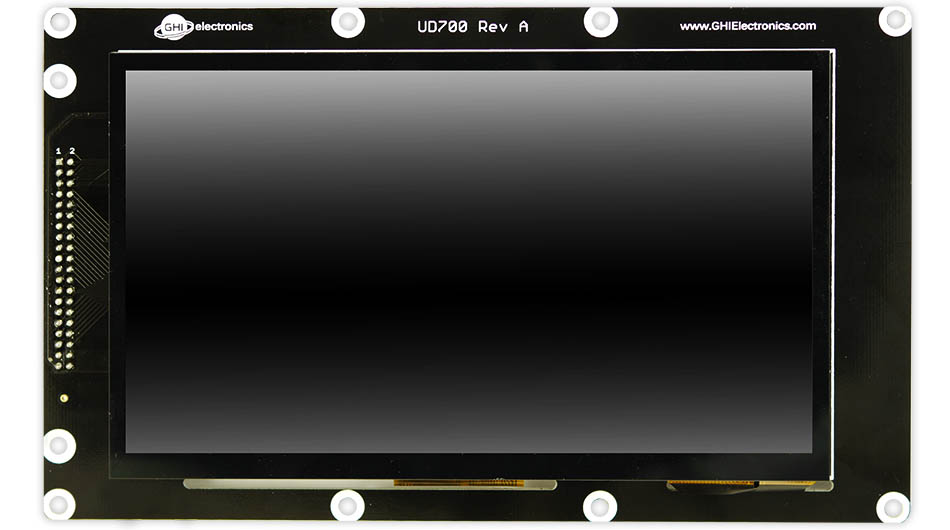

7″ Capacitive Touch Display

The SCM20260D Dev Board supports a 7″ LCD capacitive touch screen plugged into the expansion header.
800 x 600 (SVGA).


The SITCore Family

The SITCore product family is designed from the ground up to beautifully pair up with TinyCLR OS.

SITCore options include Chipsets, Modules (SoM) and single board computers (SBC).


Ordering Info

DescriptionPart NumberMSRPStatus
SITCore SC13048Q Dev BoardSCD-13048Q-B$59.95Active
SITCore SC20100S Dev BoardSCD-20100S-C$99.95Active
SITCore SCM20260D Dev BoardSCD-20260D-C$199.95Active
SITCore HDMI Adaptor BoardSCD-HDMI-ASpecial OrderActive
7″ Capacitive Touch DisplayUCD-D70-ASpecial OrderActive

Technical Resources

Getting Started
SITCore Development Board Docs
TinyCLR OS Docs
