Breathing LED

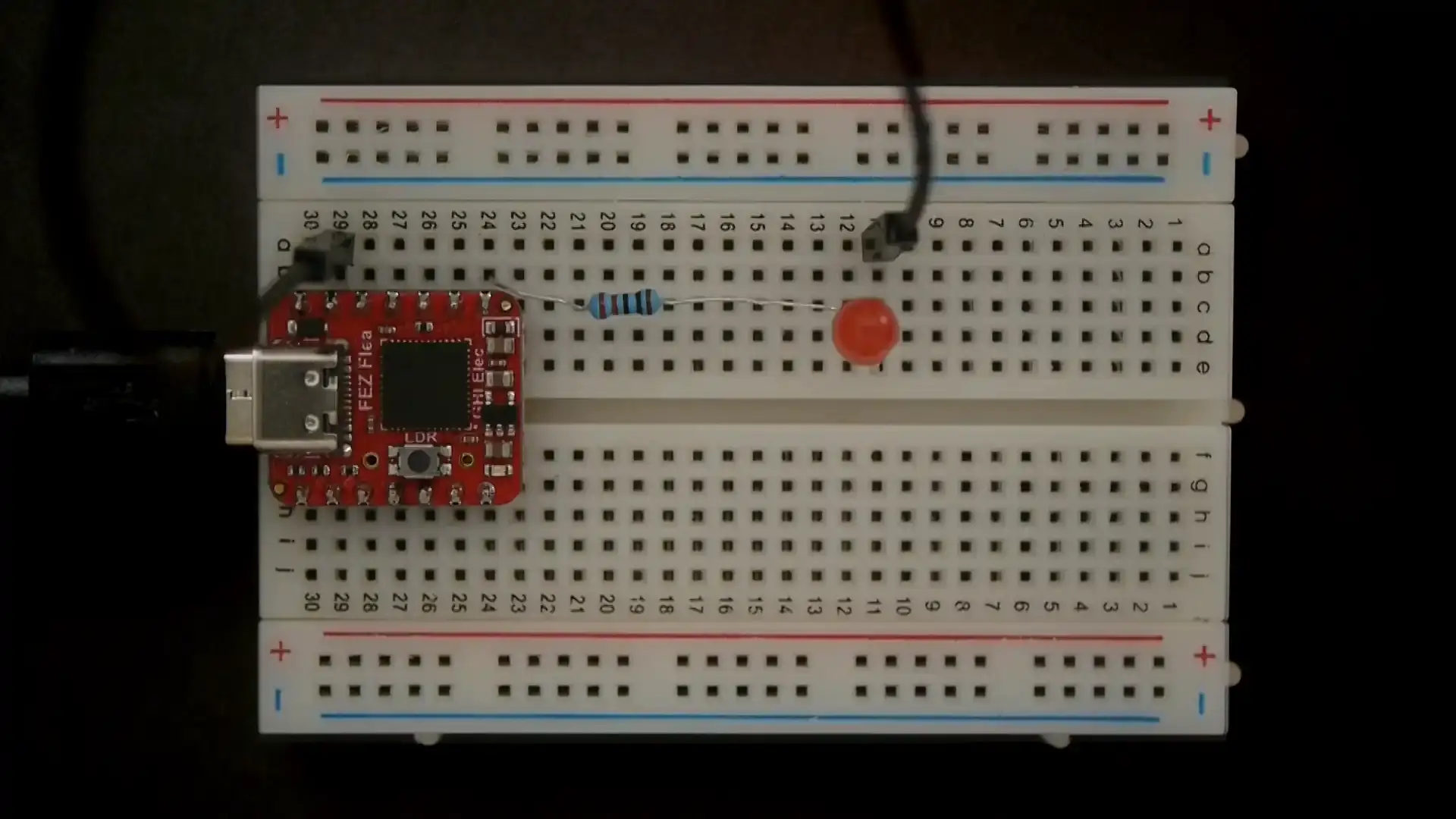

Breathing LED Main Image

A digital pin is either on or off — so how do you make an LED glow at half brightness? You switch it on and off so fast your eyes can't keep up. That's pulse-width modulation (PWM), and in this lesson you'll use it to make an LED breathe: fading smoothly up and down like a sleeping laptop.

About 30 minutes.

What you'll learn​

  • What PWM is, and the two numbers that control it: frequency and duty cycle
  • Why fast pulses look like steady, dimmer light
  • How to fade an LED smoothly — and why a straight-line fade doesn't look straight

What you'll need​

  • The Digital Output circuit — the LED and 220 Ω resistor, still wired to the same pin
  • Nothing else from the kit

Pin reference​

ConnectionFEZ FleaFEZ Bit
LED (through the 220 Ω resistor)PA3 — PWM controller 15P0 — PWM controller 3
LED groundGNDGND

This is the same wiring as Digital Output — no changes needed. Not every pin can do hardware PWM; see the PWM row in your board's pins.

Step 1 — Create the project​

Create a new TinyCLR Application project and install the GHIElectronics.TinyCLR.Devices.Pwm and GHIElectronics.TinyCLR.Pins NuGet packages.

Need the steps? Start Here covers creating a project and deploying.

The lessons use the standard .NET IoT API — System.Device.Pwm. See PWM for TinyCLR's original API and more detail.

Step 2 — Watch PWM in slow motion​

Before making it smooth, make it slow enough to see. This program pulses the LED 20 times a second, on for half of each pulse:

Program.cs
using System.Device.Pwm;
using System.Threading;
using GHIElectronics.TinyCLR.Pins;

using PwmChannel led = PwmChannel.Create(
    FEZFlea.Timer.Pwm.Controller15.Chip,
    FEZFlea.Timer.Pwm.Controller15.PA3,
    20,     // frequency: 20 pulses per second
    0.5);   // duty cycle: on for half of each pulse

led.Start();

Thread.Sleep(Timeout.Infinite);

Press F5. The LED flickers rapidly — you can still just about see each pulse.

  • PwmChannel.Create(chip, channel, frequency, dutyCycle) opens a PWM output. A PWM pin belongs to a controller (the Chip) and a channel on it — the Timer.Pwm constants in the pins library give you both.
  • Frequency is how many pulses per second, in hertz (Hz).
  • Duty cycle is how much of each pulse the pin spends on, from 0.0 (never) to 1.0 (always).
  • Start() begins the pulses. From then on, the chip generates them by itself — your code is free to do anything else, or nothing.

Now change the duty cycle from 0.5 to 0.1 and run again: short blips of light. Try 0.9: the LED is mostly on, with quick dark gaps. The pulses happen at the same rate — only the width of each pulse changes. That's the "pulse-width" in pulse-width modulation.

Step 3 — Speed it up​

Change the frequency from 20 to 1000 — a thousand pulses a second — and add a loop that steps through a few duty cycles:

Program.cs
using System.Device.Pwm;
using System.Threading;
using GHIElectronics.TinyCLR.Pins;

using PwmChannel led = PwmChannel.Create(
    FEZFlea.Timer.Pwm.Controller15.Chip,
    FEZFlea.Timer.Pwm.Controller15.PA3,
    1000,   // 1000 pulses per second — too fast to see
    0);     // start dark

led.Start();

double[] levels = { 0.02, 0.1, 0.5, 1.0 };

while (true) {
    foreach (double level in levels) {
        led.DutyCycle = level;
        Thread.Sleep(1000);
    }
}

Press F5. The flicker is gone. Instead, the LED steps through four steady brightness levels, once a second each.

Nothing about the LED changed — it's still switching fully on and fully off. At 1000 times a second, your eyes can't follow the individual pulses, so they average them into a steady glow. On for 10% of the time looks like a dim light.

Try the debugger: set a breakpoint on Thread.Sleep(1000); and press F5. When it stops, hover over level — and look at the LED. It holds that exact brightness while the program is paused, because the chip keeps generating the pulses on its own. Press F5 a few times to step through the levels, then remove the breakpoint.

Step 4 — Make it breathe​

Now fade smoothly: step the duty cycle up from 0 to 1 in 100 small steps, then back down. A small SetBrightness method keeps the loops tidy — and sets up the next step:

Program.cs
using System.Device.Pwm;
using System.Threading;
using GHIElectronics.TinyCLR.Pins;

using PwmChannel led = PwmChannel.Create(
    FEZFlea.Timer.Pwm.Controller15.Chip,
    FEZFlea.Timer.Pwm.Controller15.PA3,
    1000,
    0);

led.Start();

while (true) {
    // Breathe in.
    for (int step = 0; step <= 100; step++) {
        SetBrightness(step / 100.0);
        Thread.Sleep(10);
    }

    // Breathe out.
    for (int step = 100; step >= 0; step--) {
        SetBrightness(step / 100.0);
        Thread.Sleep(10);
    }
}

// Brightness from 0.0 (off) to 1.0 (full).
void SetBrightness(double brightness) {
    led.DutyCycle = brightness;
}

Press F5. The LED fades up and down, one breath every two seconds.

Watch closely, though. It doesn't look even: the LED gets bright quickly, then seems to sit near full brightness for most of the breath, and only dips dark briefly at the bottom.

Step 5 — Make it look smooth​

The code is changing the duty cycle evenly. The problem is your eyes: they're far more sensitive to changes in dim light than in bright light. Going from 1% to 10% looks like a big jump; going from 60% to 70% barely registers.

The fix is to spend more of the fade at the dim end. Squaring the brightness does exactly that — 0.5 becomes 0.25, 0.1 becomes 0.01, while 0 and 1 stay put. Change the body of SetBrightness:

void SetBrightness(double brightness) {
    led.DutyCycle = brightness * brightness;
}

Press F5. Now the breath looks even all the way through — a slow, steady glow in and out.

That's the payoff of wrapping the math in a method: one line changed, and every caller gets the better curve.

How it works​

Duty cycle​

Each pulse has a fixed length — the period — set by the frequency. At 1000 Hz, each period is 1 ms. The duty cycle decides how much of that period the pin is High:

Duty cycle 10%   ▇▁▁▁▁▁▁▁▁▁▇▁▁▁▁▁▁▁▁▁▇▁▁▁▁▁▁▁▁▁   dim
Duty cycle 50%   ▇▇▇▇▇▁▁▁▁▁▇▇▇▇▇▁▁▁▁▁▇▇▇▇▇▁▁▁▁▁   medium
Duty cycle 90%   ▇▇▇▇▇▇▇▇▇▁▇▇▇▇▇▇▇▇▇▁▇▇▇▇▇▇▇▇▇▁   bright
                 |← 1 ms →|

The LED receives power only while the pin is High, so a 10% duty cycle delivers about 10% of the energy of fully on. That's why PWM also works for motor speed and heaters — anything that responds to average power rather than individual pulses.

Frequency​

Frequency doesn't change brightness — it changes whether you see the pulses:

  • Below about 50 Hz, most people see flicker.
  • Around 100 Hz and up, the light looks steady. 1000 Hz leaves plenty of margin, even for fast eye movements and phone cameras.

On SITCore, hardware PWM runs from about 15 Hz to 10 kHz.

Hardware PWM​

Once you call Start(), the pulses come from a timer built into the chip — not from your code. That's why the brightness held steady while the debugger was paused, and why PWM keeps perfect timing no matter how busy your program gets.

Each timer is a controller, and each controller can drive a few pins (channels). Channels on the same controller always share one frequency — worth remembering when you drive several LEDs at once in the next lesson.

Brightness and your eyes​

Human vision responds to light roughly logarithmically: each doubling of power looks like about the same step up in brightness. A linear fade crowds most of the visible change into the first few percent. Squaring the brightness (a simple gamma correction) spreads it back out. Displays and LED drivers everywhere use the same trick, usually with a slightly stronger curve.

Try this​

  1. Breathe faster, breathe slower. Wire the button from Digital Input (with PinMode.InputPullUp), and use its event to switch the Thread.Sleep in the loops between 10 ms and 3 ms. You'll need GHIElectronics.TinyCLR.Devices.Gpio too.
  2. Heartbeat. Replace the breath with two quick pulses followed by a pause — ba-dum … ba-dum.
  3. Candle. Set a random brightness between 0.6 and 1.0 every 50–150 ms (use System.Random) for a flickering flame.
  4. The on-board LED. Both boards' on-board LEDs are wired to PWM too — Timer.Pwm.Controller1.Chip and Timer.Pwm.Controller1.Led. Make it breathe in the opposite rhythm to the breadboard LED: when one is bright, the other is dim.

Next​

RGB LEDs — three LEDs in one package: mix colors with digital outputs, then with PWM for any color you like.

Something not working, or a step unclear? Ask in the TinyCLR forum — we read every post.
